Delivers sustainable, affordable homes while conserving the Edwardian Baroque character. Breathable wall insulation and a ground source heat pump system reduce energy demand by 75%.

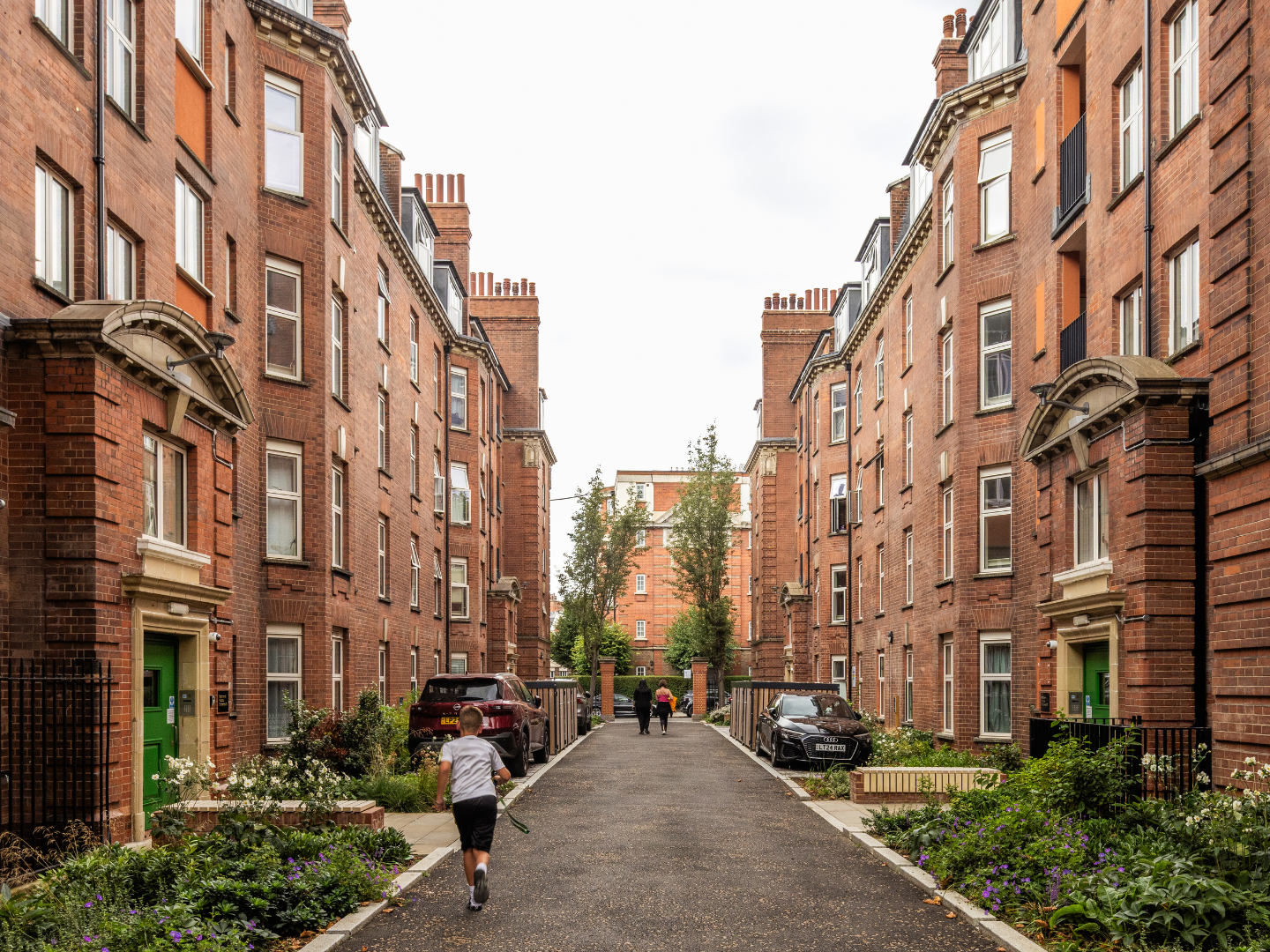

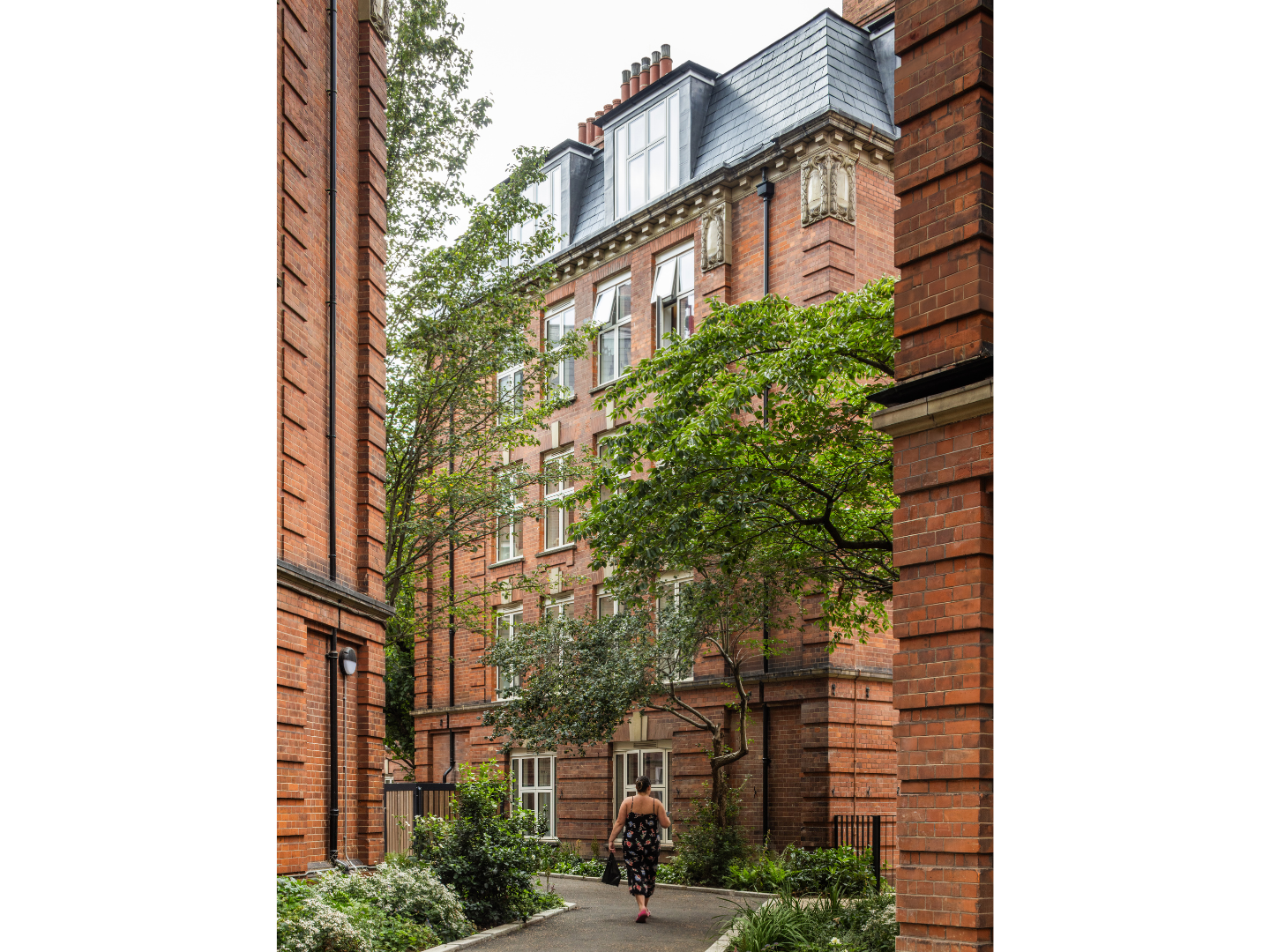

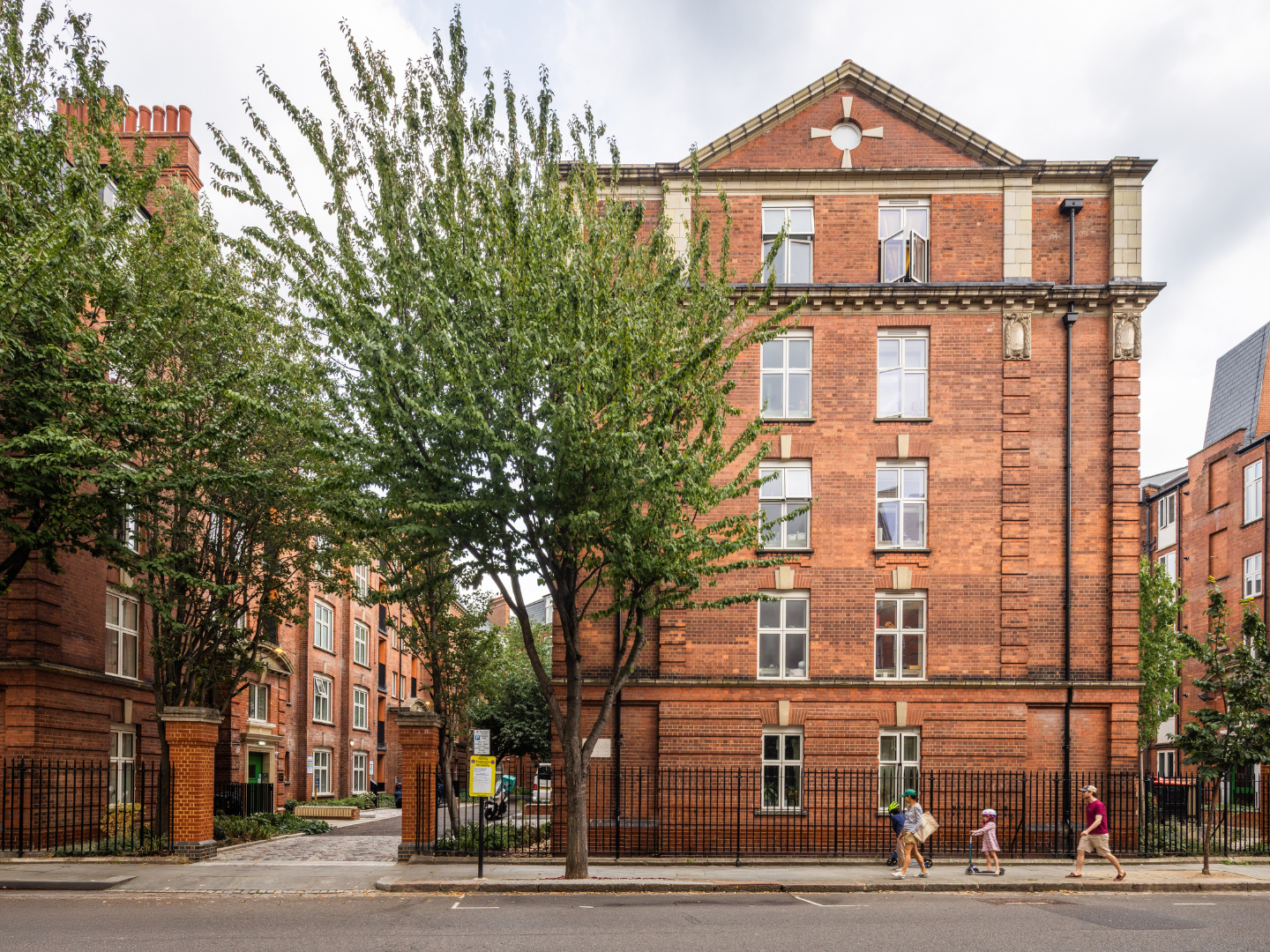

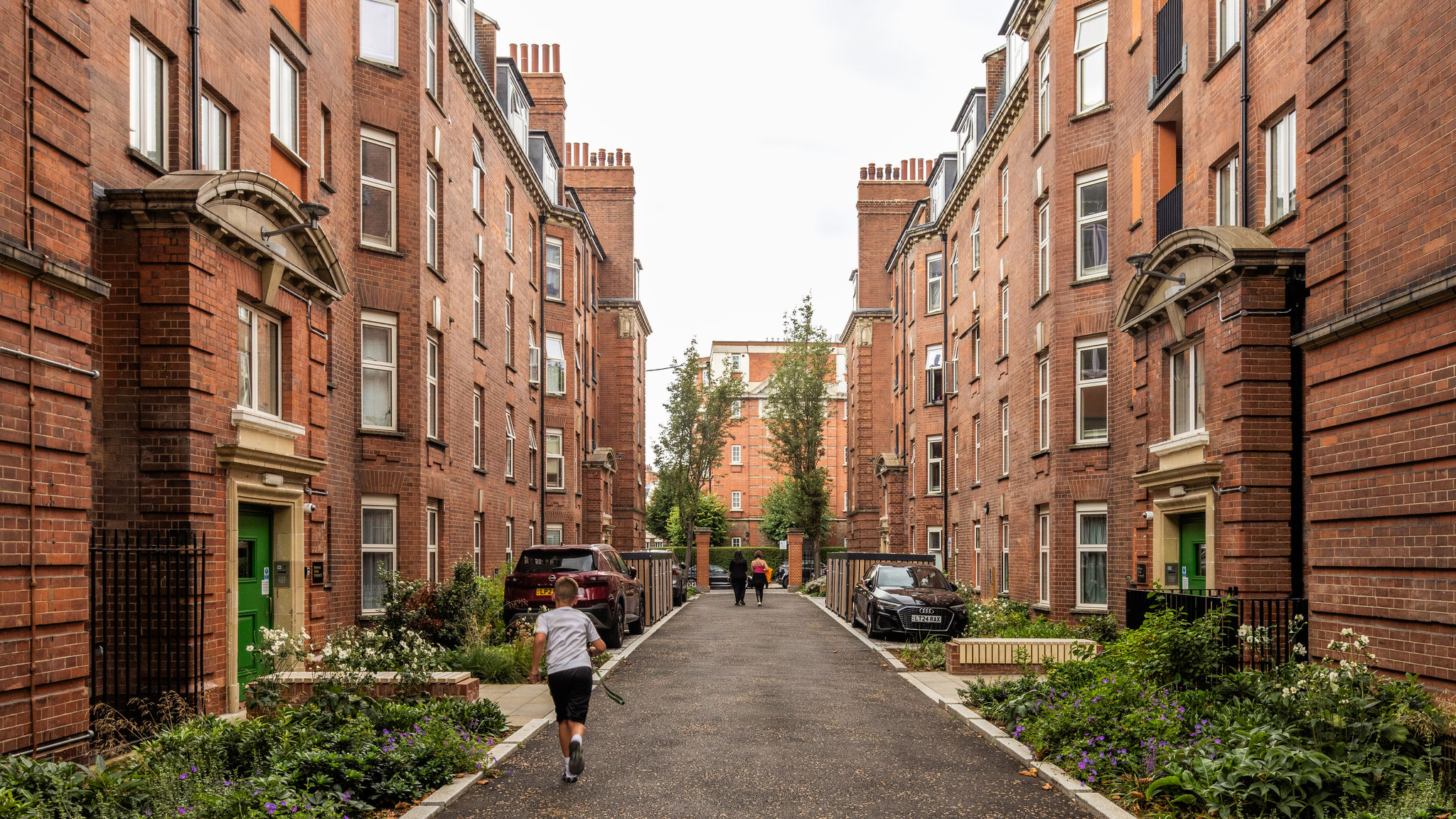

The Sutton Estate, built in 1913, stands as a pioneering social housing development, realising William Sutton’s vision to provide quality homes for those in need. Located in Chelsea, amidst some of London’s most expensive properties, the four blocks had lain vacant since 2016.

The decision to retain and modernise the estate, rather than demolish, was widely welcomed by residents and the local community. The main aims were to retain the historic fabric while enabling a multi-generational, inclusive environment. The original small and outdated studios were completely reconfigured to create a mix of 1, 2, 3 and 4-bedroom homes, including eight fully accessible groundfloor flats for wheelchair users. The installation of lifts in every block ensures full access to upper floors.

The architectural approach optimised Sutton Estate by maximising existing fabric and spatial potential. The external appearance was updated, with new double-glazed windows improving ventilation, daylight, and thermal performance. Internal breathable wood fibre insulation further conserves original brickwork while significantly reducing heat loss.

Recessed balconies were created by repurposing original ‘privvy’ toilets, providing private outdoor amenity without compromising the façade’s formality. Minimising structural intervention, most load-bearing walls and chimney breasts were retained. Only four chimney stacks were removed, with fireplaces enclosed and ventilated – an innovative ‘locking in carbon’ method that avoids rebuilding emissions. These interventions collectively increased room sizes and enhanced natural light, significantly improving the quality of living for residents.

The innovative energy strategy significantly reduces the estate’s carbon footprint, demonstrating the feasibility of ground source heat pumps in dense urban sites, and providing affordable energy for older buildings.

A central landscaped community garden encourages social connection and access to nature. Well-designed communal green spaces feature raingardens, forming part of the estate-wide SuDS strategy.

The Sutton Estate exemplifies how retrofit can transform high-density housing, establishing a replicable model for decarbonising existing urban infrastructure and extending building lifespans by a century.
